Marubishi Denshi Co., Ltd.

The expert company of heat treatment
We are a group of experts who know how to forge steel.

Although our company is a "Kuroko" (behind-the-scenes supporter) in the business categorization of the Japanese Industry Association and it is hard to be recognized in general, we play an important and indispensable role in the manufacturing industry in Japan.
Currently, the world is paying attention to niche areas that need our technology such as automobiles, construction machines, machine tools, industrial machinery, aircraft, and the space development business.

■Company Profile

Main Office & Factory: 1-2-10 Tekkochou, Nagaoka City, Niigata Pref. 940-2022 JAPAN
Kariwa Factory: Katsuyama Industrial Estate, 547-1 Takiya, Kariwa-mura, Kariwa-gun, Niigata Pref. 945-0303 JAPAN

TEL: +81 (0) 258-28-2222 / FAX: +81 (0) 258-28-2223
URL: www.marubishi-ht.com

■Our Strengths

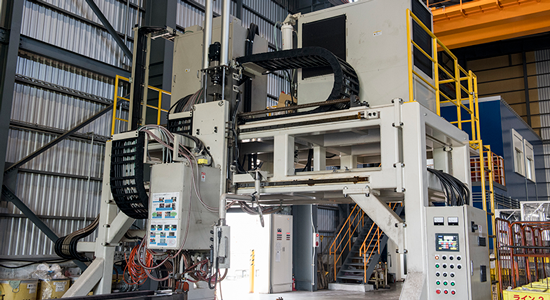

High-class inductive hardening equipment

We have the largest quenching equipment on the west coast of Japan and it can process material up to 15 m long, 4 m wide, and 1.5 m tall.

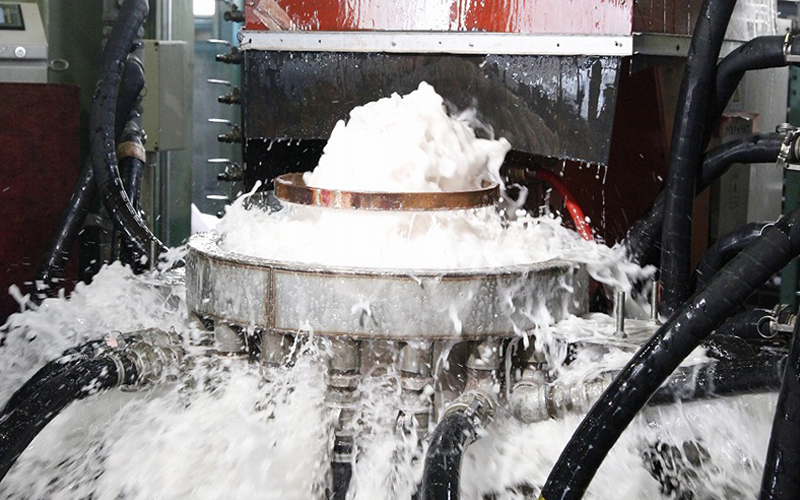

High-class quenching equipment

We have the best inductive hardening equipment on the west coast of Japan and it can process material up to Ф 1300 * 3000 L.

Distortion removal technology

Distortion will always come out when heat treatment is performed. We have the technology to correct the distortion.

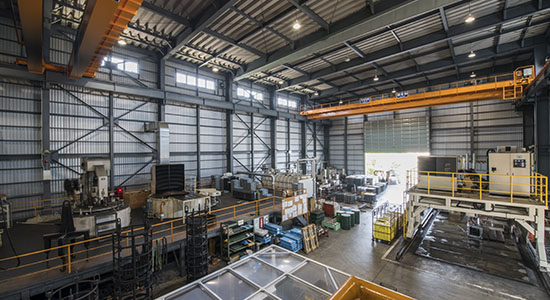

■A look into our work

■Certifications

・JISQ9100:2016
・JISQ9001:2015(ISO9001:2015)

■Major Facilities

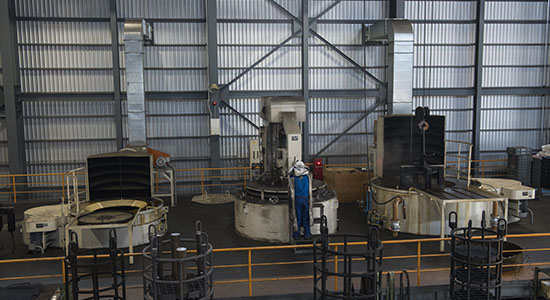

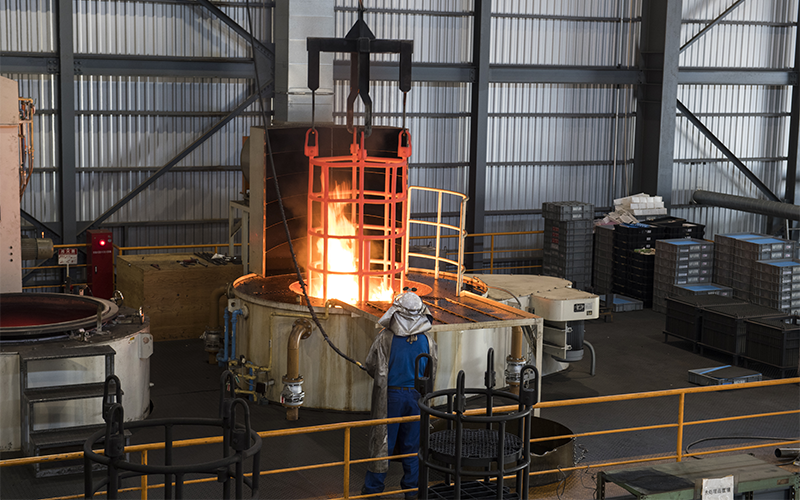

Pit-type carburizing quenching furnace: Effective size: Ф 800 * 1500 L (2 machines)
Pit-type carburizing quenching furnace: Effective size: Ф 1300 * 3000 L (1 machines)
Nitriding furnace: Effective size: Ф 600 * 1200 L (1 machines)
Nitriding furnace: Effective dimensions: 1000 * 1000 * 1700 L (2 machines)
High-frequency quenching machine (VT 50 Kw): Processing size: Ф 80 * 800 L
High-frequency quenching machine (VT 80 Kw): Processing size: Ф 120 * 700 L
High-frequency quenching machine (VT 150 Kw): Processing size: Ф 300 * 1000 L
High-frequency quenching machine (VT 200 Kw): Processing size: ambulation Ф 350 * 10000 L・ stationary 500
High-frequency quenching machine (PTG 250 Kw): Processing size: ambulation Ф 350 * 10000 L・ stationary 500
High-frequency quenching machine (TG 300 Kw): Processing Size: Length 15 m width 4 m height 1.5 m
High-frequency quenching machine (TG 300 Kw): Processing size: Ф 500 to 1000
High-frequency quenching machine (TG 400 Kw): Processing size: Ф 800 to 1000 * 3000 L
High-frequency quenching machine (Mie): Processing size: Ф 10 * 300 L
